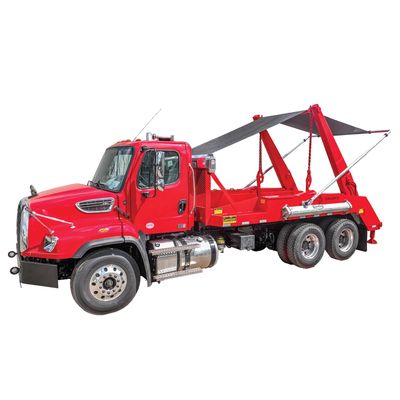

Lugger Units
Experience the Best with Converto Manufacturing
Place containers of appropriate size and shape at locations you select; move materials in these containers whenever and wherever you wish-letting one truck and one driver handle your complete ConverTainer system! The truck brings an empty container to the site, loads a full container from the site, returning with more containers as needed. Productivity is at a maximum! ConverTainer lift hoists are easily controlled. They are versatile-handling a variety of materials. Converto's exclusive J-hook system permits longer containers to be handled, and dumped, with stability and safety superior to that of systems using center dump hooks.
Dump method/containers
- One truck becomes a fleet with detachable containers
- One driver can operate the ConverTainer system
- Not limited to one container manufacturer
- J-hook system is an exclusive method used in the ConverTainer system
- Dumping flexibility. Need a dump hook method? ConverTainer does it
- ConverTainer is compatible with apron center dump hooks
- Container designs for liquid or solid material
- Jack leg trunnion assembly standard
- Fixed jack leg assembly is standard on Model 120-H-50 : available on other models
- Load flexibility. See table below
- Model numbers track lifting capacity
- Experienced people will readily suggest the right combination of chassis and lift hoist model for your particular needs
Hydraulics
- Low pressure hydraulic system : less wear on components and easy on maintenance
- Air controls AND cable controls available
- Inside controls standard
- Outside controls : outside are optional
- Hydraulic equipment placed for easy access
- Control valves are mounted on top for easy maintenance
- Oil reservoirs are top-mounted at the right side for cleanliness and convenience in use
Chassis
- Single axle on lower weight hoists
- Tri Axles & Air Lift available
- Contact/Jackleg cylinders. Make the PTO do the lifting and dumping
- We have Pup Trailers. Work smart and save TIME AND FUEL
- Save maintenance time and cost
Converto will supply containers to your order for liquid or solid materials - or you may use other containers of similar appearance and dimension! You are not limited to one manufacturer's container design.
Years of know-how help Converto engineer longevity into each product, saving you maintenance time and cost. For example, load shifts result in slipping of the load arms on the load shaft. With a ConverTainer unit, the worst thing that can happen is that a fitting held by six bolts may be forced out of position. Replacement is a five minute operation. Compare that with the redrilling which may be required by a broken shear pin assembly!
Heavy, rugged construction cuts maintenance costs. Weight distribution is enhanced by mounting on a shorter cab to center of tandem dimension, increasing strength.
Easy access for service is built in.
Twin J-hooks enable dumping, allow ConverTainer hoists to pick up other makes of containers. In dumping the container is held firmly in place as hydraulic contactors fit into the curve of the "J."
Model #54-H-12:
- Loading Capacity - 12000 LBS
- Weight of Hoist - 4600 LBS
- Cylinder Size - 7" x 40"
Model #78-H-12:
- Loading Capacity - 12000 LBS
- Weight of Hoist - 5200 LBS
- Cylinder Size - 7" x 40"
Model #78-H-20:
- Loading Capacity - 20000 LBS
- Weight of Hoist - 5200 LBS
- Cylinder Size - 8" x 40"
Model #96-H-26:
- Loading Capacity - 26000 LBS
- Weight of Hoist - 7000 LBS
- Cylinder Size - 8" x 45"
Model #96-H-30:
- Loading Capacity - 30000 LBS
- Weight of Hoist - 7000 LBS
- Cylinder Size - 9" x 45"
Model #120-H-35
- Loading Capacity - 35000 LBS
- Weight of Hoist - 7950 LBS
- Cylinder Size - 9" x 45"
Model #120-H-35 LD:
- Loading Capacity - 35000 LBS
- Weight of Hoist - 8200 LBS
- Cylinder Size - 9" x 45"
Model #120-H-50:
- Loading Capacity - 50000 LBS
- Weight of Hoist - 10000 LBS
- Cylinder Size - 9" x 50"
